Two-Photon Microscopy (TPEF)

Illuminating Life in Depth

Seeing deeper, clearer, gentler

The most fascinating biological processes often happen deep inside living tissue, which light normally cannot reach due to scattering and absorption. Two-Photon Excitation Fluorescence Microscopy (TPEF) breaks this barrier, allowing scientists to image intact organisms, live cells, and even neuronal networks hundreds of micrometers beneath the surface — without damage or distortion.

Two-photon microscopy combines the precision of laser scanning with the power of nonlinear optics to visualize with sub-cellular resolution in depth, in 3D, and in real-time.
And at the heart of this revolutionary imaging technique lies the femtosecond laser — delivering pulses of light ultra-short and intense enough to excite fluorescence with two photons at once.

The principle: Two photons, one excitation

Image: Dr. Hans-Ulrich Fried, DZNE Bonn, Germany
Image: Dr. Hans-Ulrich Fried, DZNE Bonn, Germany

In conventional (single-photon) fluorescence microscopy, a fluorophore absorbs a single high-energy photon to reach its excited state.
In two-photon microscopy, the same excitation occurs through the simultaneous absorption of two photons of lower energy — typically in the near-infrared (NIR) region.

The likelihood of two-photon absorption is intensity dependent and it can only happen at the focal point of a tightly focused femtosecond laser beam.
As a result:

  • Excitation is confined to a tiny focal volume, eliminating the need for a pinhole or confocal aperture in the detection scheme.
  • Photobleaching and photodamage outside the focus are drastically reduced.
  • Scattering is minimized, allowing imaging much deeper into biological tissue.

By scanning the focal point in three dimensions, researchers obtain high-resolution, optically sectioned images — just like in confocal microscopy, but with far greater depth and gentleness.

Why two-photon microscopy matters

Two-photon microscopy has transformed biophotonics, neuroscience, and clinical imaging, offering a unique combination of optical sectioning, deep tissue penetration, and live-cell compatibility.

Its key advantages include:

  • Deeper penetration depth (up to 1 mm or even more)
  • Reduced phototoxicity and photobleaching, ideal for live tissue imaging.
  • No pinhole required — intrinsic optical sectioning from nonlinear excitation.
  • Better signal-to-noise ratio in scattering tissue, even at large depths.
  • Simultaneous multi-color excitation of different dyes or auto-fluorescence using a single femtosecond source.

For these reasons, TPEF is now a standard technique in neuroscience, developmental biology, and intravital imaging — enabling researchers to study live systems as they function in real time.

Typical biological samples in two-photon imaging

Data taken with FemtoFiber ultra 920 fiber delivery on Bergamo® II Multiphoton Microscope (Green and red channel)
Data taken with FemtoFiber ultra 920 fiber delivery on Bergamo® II Multiphoton Microscope (Green and red channel)

Two-photon microscopy excels at visualizing thick, living, or scattering samples that are challenging for conventional microscopy:

  • Brain tissue – in vivo imaging of neuronal activity and synaptic dynamics.
  • Zebrafish, Drosophila, or C. elegans embryos – developmental biology in transparent or semi-transparent organisms.
  • Organoids and tissue explants – 3D model systems for organ development or disease.
  • Vasculature and tumor microenvironments – blood flow, angiogenesis, and drug delivery.
  • Skin and eye tissue – non-invasive optical biopsy and clinical imaging.

The ability to visualize structures hundreds of micrometers deep in living samples has made two-photon microscopy indispensable for studying how cells, tissues, and networks behave in their natural context.

The power of femtosecond lasers

To drive the nonlinear two-photon excitation process efficiently, the laser must deliver:

  • High peak power (requiring typically femtosecond pulses).
  • Diffraction-limited beam quality.
  • Wavelength matching to the fluorophore’s absorption.
  • A repetition rate matched to the fluorescent lifetime of the dye (typically 20-80 MHz)

Femtosecond fiber lasers have become the preferred light source for TPEF due to their stability, compactness, and hands-free operation — outperforming traditional Ti:Sapphire lasers in reliability and maintenance effort.

Recommended fixed wavelengths and fluorophores

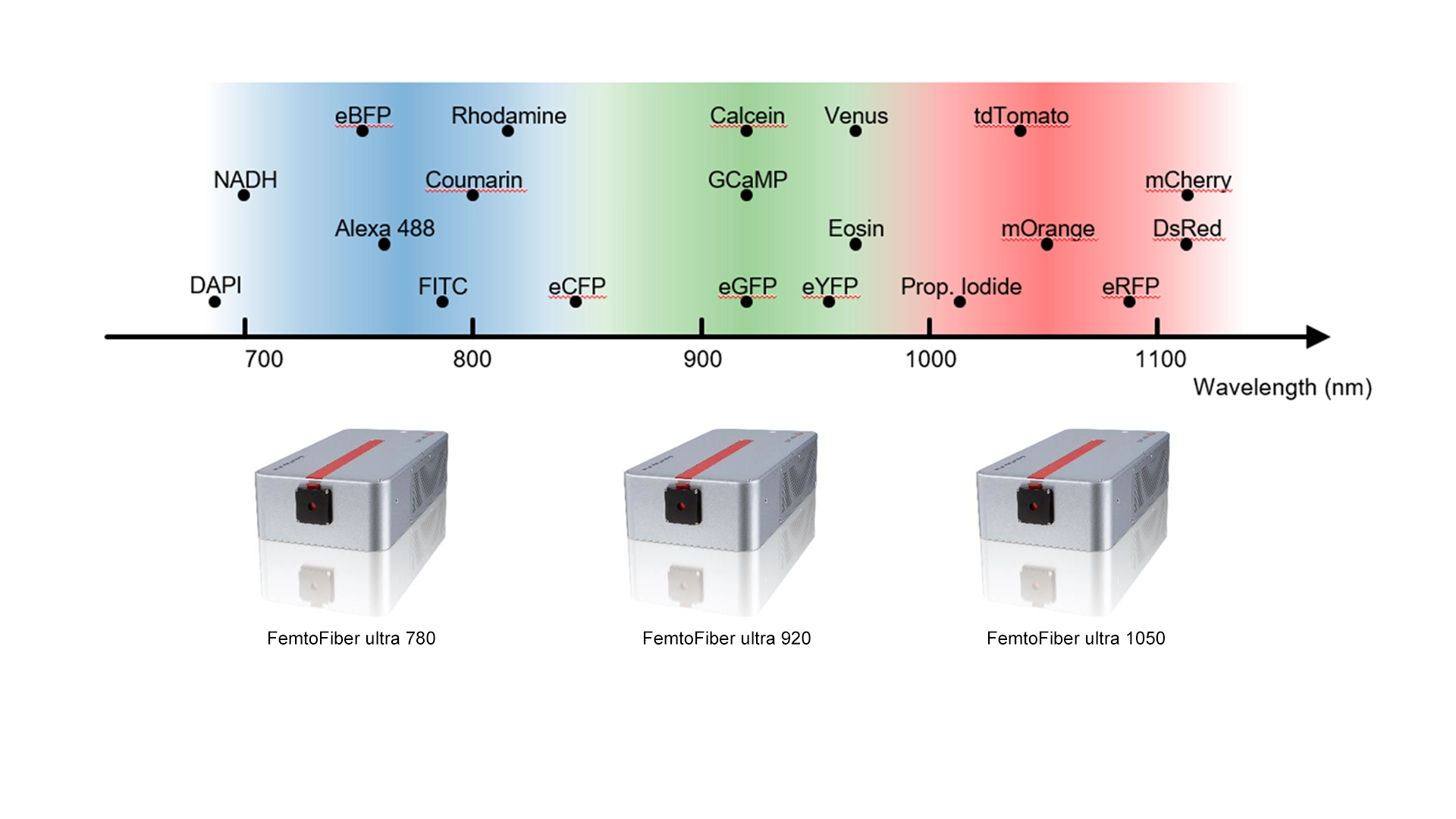

Most common markers matched to laser wavelength
Most common markers matched to laser wavelength

Different fluorophores and fluorescent proteins require different excitation wavelengths.
Fixed-wavelength femtosecond fiber lasers at 780 nm, 920 nm, and 1050 nm cover most common dyes or auto-fluorescent used probes in two-photon imaging:

Laser Wavelength Typical Fluorophores / Chromophores Application Examples
780 nm DAPI, Alexa Fluor 350, Fura-2, NADH Calcium imaging, DNA staining, metabolic imaging
920 nm GFP, Alexa Fluor 488, Oregon Green, GCaMP, Eosin, CFP, FAD Neuronal calcium imaging, cell tracking, metabolic imaging
1050 nm tdTomato, mCherry, Alexa 594, Rhodamine, RFP, mOrange Deep tissue red fluorescence imaging, dual-color imaging

By selecting the appropriate wavelength, researchers can maximize signal strength, minimize tissue heating, and achieve optimal penetration depth for their specific application.

Fiber lasers – Simplicity meets stability

TOPTICA’s femtosecond fiber lasers combine fixed, biologically relevant wavelengths with robust fiber architecture — providing plug-and-play operation for demanding research and clinical environments.
Compared to bulky, alignment-sensitive Ti:Sapphire or OPO systems, TOPTICA's femtosecond fiber lasers offer:

  • Clean Pulse Technology for highest fluorescence image brightness.
  • Software-control of the group delay dispersion (GDD) pre-compensation
  • An integrated acousto-optic modulator (AOM).
  • Extremely compact and passively-cooled.
  • Seamless integration through optional fiber delivery with COOLAC.
  • Fast, hands-off startup and no user alignment.
  • Consistent performance across months of operation.
  • No noise or vibration (due to passive air cooling)

The laser systems with fiber delivery route the laser beam directly into the microscope via polarization-maintaining hollow-core fibers. This drastically simplifies experimental setups and minimizes drift or vibration sensitivity. With TOPTICA's COOLAC the lasers offer hands-off, automated fiber coupling that eliminates manual alignment at installation, optimizes fiber coupling at the touch of a button, and monitors fiber coupling efficiency completely internally without the need for external tools or equipment. Especially, miniaturized two-photon microscopes like Mini2P, benefit from this laser technology.

Simplifying the path to clinical two-photon imaging

Until recently, the complexity and cost of traditional ultrafast laser systems limited two-photon microscopy to specialized research labs.
Fiber-based femtosecond lasers are changing that paradigm — combining turnkey operation and robustness suitable for clinical and translational environments.

This simplification is paving the way for clinical-grade two-photon imaging systems in dermatology, ophthalmology, histology, and endoscopy.

Emerging Clinical Examples

The new generation of compact, fiber-coupled femtosecond lasers brings the promise of two-photon microscopy from the research bench to the clinical applications.
