THz Gas analysis

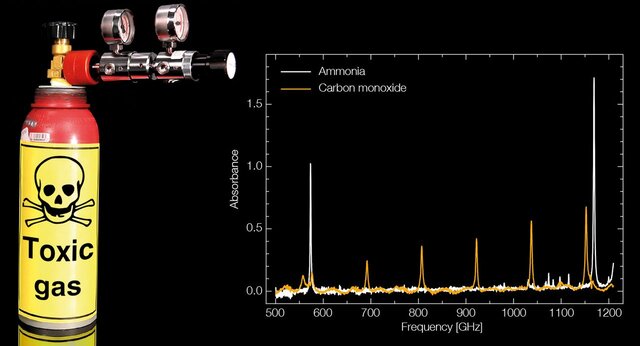

Many gas molecules have distinctive “fingerprints” in the THz region, typically in the range of 0.1 THz to 10 THz. These absorption signatures correspond to low-energy rotational and torsional transitions, and weak intermolecular modes. In a frequency-domain THz spectroscopy system (THz-FDS), the beat signal of two narrow-line diode lasers is converted to monochromatic, continuous-wave THz radiation. Tuning the laser wavelengths thus sweeps the THz frequency. In gas sensing, the absorption (and optionally phase) change due to the target gas is measured. Since many gases exhibit sharp, unique absorption resonances, a single THz transmitter/receiver pair can identify and quantify a large number of species.

In the THz regime, the fingerprint regions of gases convey rich information:

• Low-frequency rotational lines (roughly ~0.1–3 THz): These correspond to discrete rotational transitions of polar gas molecules. Sharp, narrow lines provide high specificity, enabling unambiguous species identification. Quantifying the minute signal shifts of small gas concentrations requires THz systems with high frequency resolution, narrow linewidth and superior signal stability.

• Torsional / vibrational-rotational combination modes (roughly ~3–10 THz): These transitions often involve low-energy bending or internal motion of larger molecules, giving access to more complex chemical species and trace organics. The spacing and intensities of the lines carry information about molecular structure, mixture composition, pressure and temperature.

• Broadband continuum and phase behaviour: By measuring amplitude and phase of the THz wave over a broad band, the refractive index and absorption coefficient of the gas mixture can be deduced. Hence, concentration, mixture ratios and even some physical gas-properties (pressure, collisional broadening) become accessible.

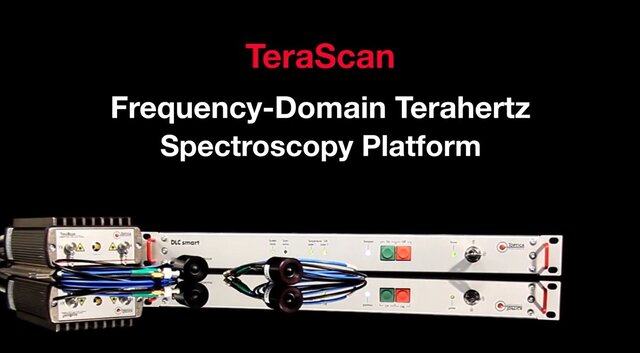

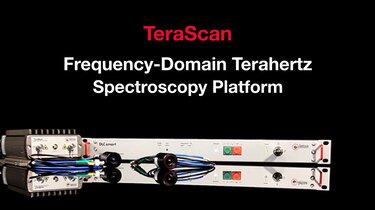

Our focus here is on frequency-domain THz spectroscopy (THz-FDS). Unlike time-domain approaches which employ ultrashort THz pulses and thus provide broadband spectra, THz-FDS commonly uses photomixers to generate tunable, monochromatic continuous-wave (CW) THz radiation, with the frequency being swept across the target band. The high spectral resolution (MHz or even sub-MHz) helps resolve narrow rotational transitions in many gaseous species.

Key features of the THz-FDS approach:

• A wide frequency sweep covers many absorption lines of different gases. Thereby one system can monitor a multitude of species simultaneously.
• The high spectral resolution ensures that adjacent lines can be separated, yielding high selectivity.
• Because the technique uses longer wavelengths (lower scattering), the measurement can succeed in harsh or obscured environments (smoke, soot, dust) where IR-optical absorption fails.
• By measuring amplitude and phase, the system provides robust quantification even in the presence of interference or background absorption.

Consequently, THz-FDS is ideally suited to demanding applications: industrial process monitoring, security (e.g., toxic or explosive gases), rescue / firefighting situations, or atmospheric sensing.

Although early-day THz systems were considered laboratory curiosities, modern THz-FDS platforms have demonstrated ppm-level (parts-per-million) detection limits for many target gases, making them practical for real-world sensing.

Compared with conventional chemical sensors, THz gas analysis offers:

• Sensitivity: THz spectroscopy has reached ppm (and in research even sub-ppm) detection limits with sufficient path length and signal processing. This is comparable to or better than many legacy sensors.

• Selectivity: Many gas species exhibit distinct rotational-line signatures in the THz regime, so cross-sensitivity is dramatically reduced. Conventional sensors often struggle with interfering gases and require complex compensation.

• Response Time: THz absorption measurements can be made in quasi-real time (typically seconds), dependent only on gas flow and integration time but not on sensor chemical diffusion or reaction kinetics.

• Dynamic Range: THz systems offer a very high dynamic range, typically up to 80-100 dB. They can therefore measure gases over many orders of magnitude in concentration. Many chemical sensors suffer from saturation or non-linearity at extremes.

• Environment Robustness: Because THz waves penetrate smoke, dust and other scattering media better than shorter IR wavelengths, THz gas sensing can work in environments where optical/IR sensors fail.

• Multi-species capability: One system can measure many gases at once. Conventional sensors typically monitor one or two species only.

Although still emerging in many sectors, THz gas analysis is already being adopted:

• Fire-/Rescue-Scene Monitoring: THz systems detect CO, HCN and other combustion-by-product gases, enabling safer decision-making in firefighting.

• Industrial Leak Detection: A THz platform can monitor gas leaks (e.g., toxic or flammable gases), even in dusty or smoky stacks or enclosed hazardous areas.

• Atmospheric & Environmental Sensing: Research platforms for tracking trace atmospheric gases in complex aerosol loads, including volatile organics and greenhouse-gas derivatives.
• Security / Defence: Detection of chemical warfare agents or toxic industrial chemicals.
• Process Monitoring in Harsh Conditions: Combustion plants, waste-incineration or pyrolysis vessels where visible/IR access is limited, but THz access remains feasible.
• Specialty Science & Research: Lab-scale THz-FDS systems are used to characterize gas mixtures, including the analysis of exhaled breath or emittances of decaying food.

In practise, these systems operate at frequencies spanning ~0.1 – 3 THz (~100–3000 GHz) and take advantage of known absorption lines of target gases in that region. The flexibility to cover multiple gases with one system is a key differentiator.
