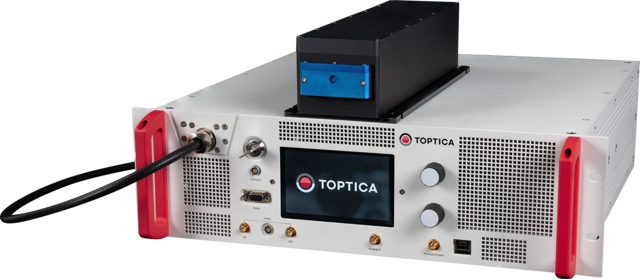

ALS-IR

Single frequency, CW laser for your power hungry application

The ALS Series Fiber Lasers are engineered to push bounaries - combining high power, single-mode, and single-frequency performance with ultra-low noise to deliver the ultimate in precision and stability.

Whether you're driving cutting-edge quantum research, interferometry, semiconductor inspection, or laser pumping, ALS lasers provide the clean, stable beam your application demands.

Designed for long-term reliability, the ALS Series features a rugged, all-fiber design with a coolerless laser head that guarantees excellent spatial mode quality. There's no need for alignment, tuning, or maintenance - just seamless, hands-free operation that keeps your system running flawlessly 24/7.

These systems excel in stability, offering best-in-class performance where it matters most: ultra-low relative intensity noise, outstanding pointing and frequency stability, and the narrow linewidth characteristic of true single-frequency operation. With frequency drift kept under 50 MHz over 8 hours and power stability better than ±0.5% long term, the ALS Series sets the benchmark for precision laser technology.

Whether you're advancing fundamental research or scaling industrial innovation, the ALS Series delivers the reliability, performance, and integration simplicity to accelerate your goals -with delivering light you can trust, every time.

Your Benefits

Better fidelity
The amplification process is proven to add the lowest amount of RIN and no phase noise to the input signal.
More qubits
The access to high power and parallel amplification enables the deployment of a larger number of beamline.
Scalability made possible
The cutting edge set of specifications provided by ALS-IR is available up to 130W enabling scalability of measurement processes.

Applications

Quantum physics science
Atom quantum computing & simulation

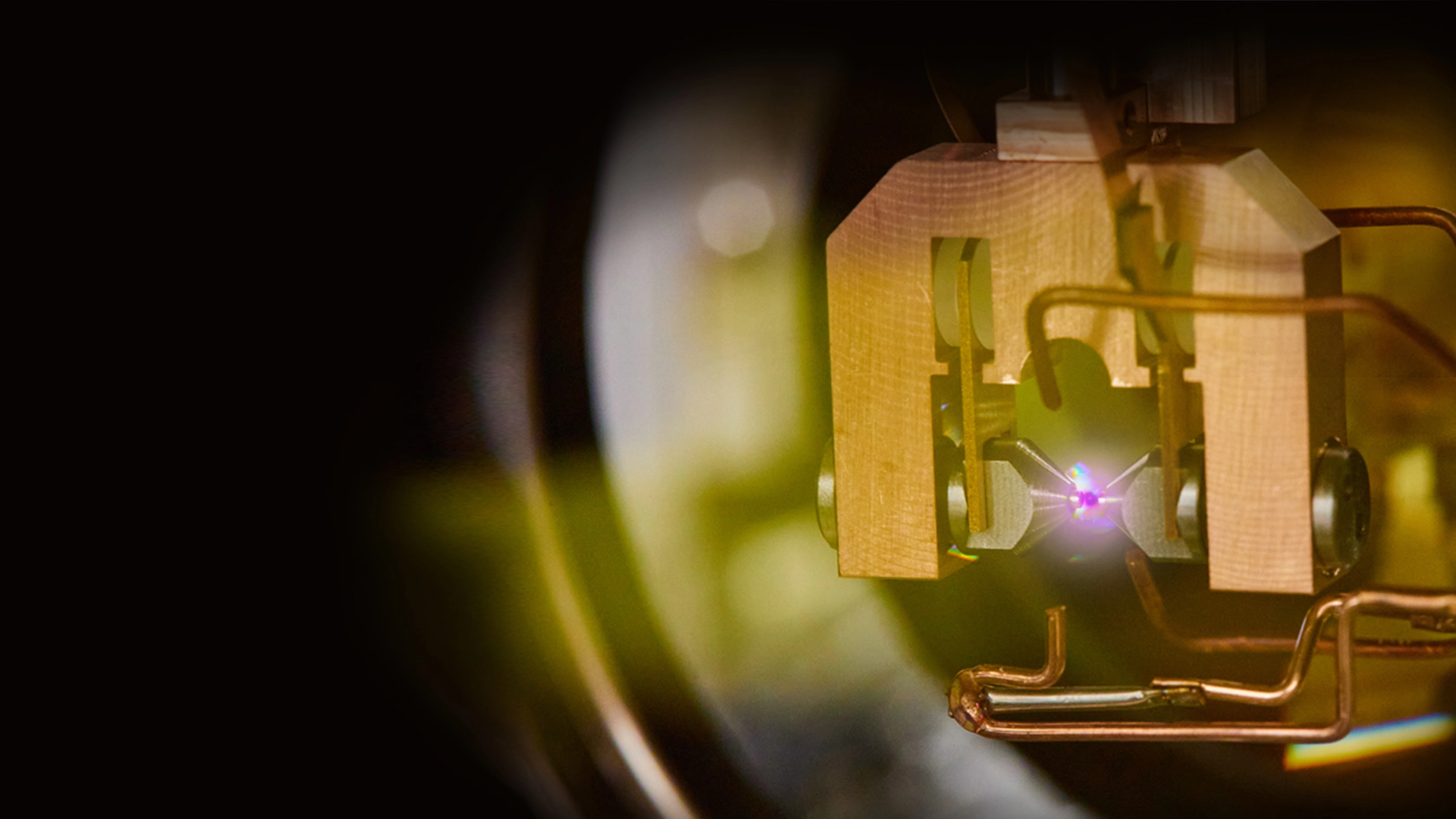

Ion quantum computing & simulation

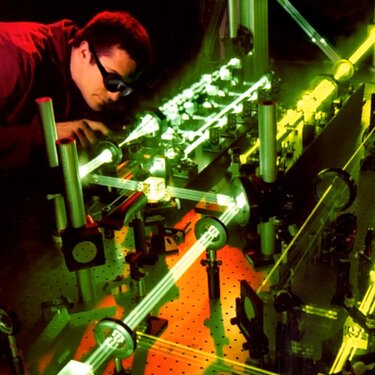

High brightness laser pumping
Eliminate feedback to maximize ECDL stability

Options

Seed laser
The ALS-IR can be supplied not only as an amplifier, but as a laser. This requires the addition of the proper seed laser. Ask us for the best fit for your application.
Fibered optical output
Up to 10W of power, the ALS-IR series can be supplied with a fibered output with a FC/APC connector
Rack cooling
Air-cooled or water-cooled. Note that some architecture must be associated with a water-cooled rack
Active noise reduction system
The noise eating option ALS-ANRS-YB reduces the intensity noise even further. [100 Hz .. 3 kHz] : <-135 dBc/Hz, [3 kHz .. 10 MHz] : <-150 dBc/Hz, [100 Hz .. 10 MHz] : <0.005% RMS. It must be implemented in a water-cooled rack.
Remote control interface
The ALS-RCI device enables a full external control of the product via serial commands (UART protocol) or via software.
Signal monitoring for locking
The ALS-MONITOR option provides access to the signal for locking purposes. Output interface : 1.2 m long fiber, FC/APC connector.
