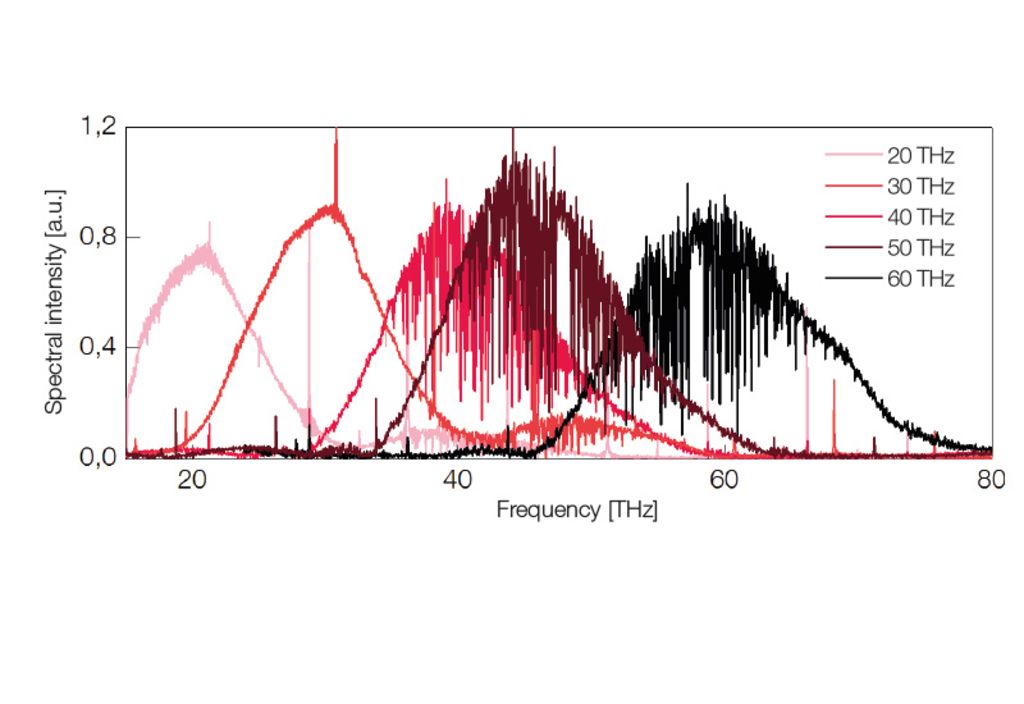

Typical emission spectra superimposed with water absorption lines
FemtoFiber dichro midIR
Broadband mid-infrared femtosecond laser source
- Broadband mid-IR laser source (> 400 cm-1)
- Wavelengths 5 – 15 µm (20 - 60 THz / 670 - 2000 cm-1)
- Average output power typ. 1 mW (integrated spectrum)*
- SAM mode-locked all PM fiber setup
- User friendly turnkey operation
- Fully automated DFG optimization

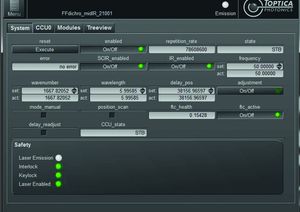

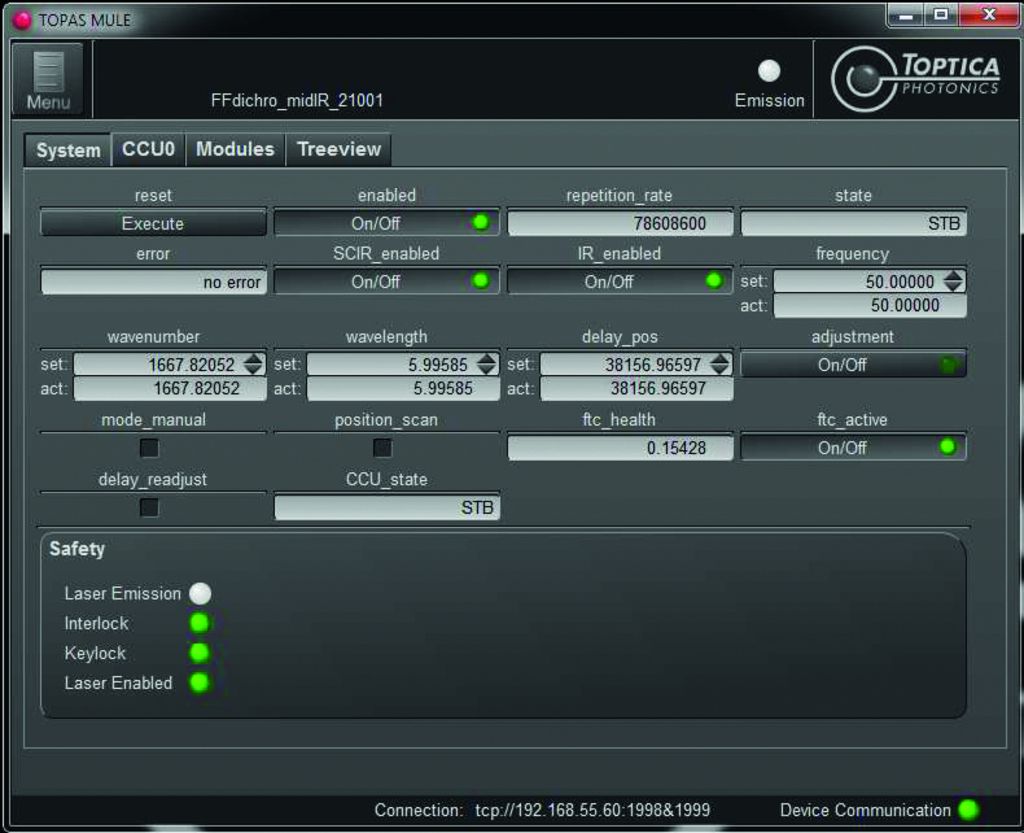

The new FemtoFiber dichro midIR represents an ideal laser source for mid-infrared spectroscopy and imaging. It provides a tunable broadband output in the wavelength range of 5 to 15 µm (20 - 60 THz, 670 - 2000 cm-1). The unique 400 cm-1 broad emission spectra allow to excite a wide range of materials at the same time. The air-cooled system is based on TOPTICAs proprietary fiber laser technologies and includes a difference frequency generation (DFG) unit as well as all necessary electronics into the same box. All functions and features are computer controllable by Ethernet or USB interfaces.
-
Specification
Spectral tuning range 5 - 15 µm (20 - 60 THz / 670 - 2000 cm-1) Output Power typ. 1 mW (integrated spectrum)* Emission Bandwidth > 400 cm-1 Repetition Rate 80 MHz - Additional Information
-
Options
- FemtoFiber pro multiarm-capable system (see AMP option), other laser systems can be added for pump-probe experiments. Please contact us for details.
-
Applications
- Mid-infrared spectroscopy
- Mid-infrared imaging
-
Downloads
Technical Drawing FemtoFiber dichro midIR
-
Literature
- Article: Eisele, M. et al. Ultrafast multi-terahertz nano-spectroscopy with sub-cycle temporal resolution. Nat. Photonics 8 (2014)
- Article: C. Erny et al., Mid-infrared difference-frequency generation of ultrashort pulses tunable between 3.2 and 4.8 µm from a compact fiber source, Optics Letters 32 (2007)
- Article: A. Gambetta et al., Mid-infrared optical combs from a compact amplified Er-doped fiber oscillator, Optics Letters 33 (2008)
- Article: O. Chales et al., Design and simulation of few-cycle optical parametric chirped pulse amplification at mid-IR wavelengths, Optics Express 16 (2008)
- Article: Liu, S., et al., Mid-infrared time-domain spectroscopy system with carrier-envelope phase stabilization, Appl. Phys. Lett. 103 (2013)
- Article: Benz, A. et al., Strong coupling in the sub-wavelength limit using metamaterial nanocavities, Nat. Commun. 4, (2013)
- Article: Amenabar, I. et al., Structural analysis and mapping of individual protein complexes by infrared nanospectroscopy, Nat. Commun. 4, (2013)
- Article: Keilmann, F., et al., Mid-infrared Frequency Comb Spanning an Octave Based on an Er Fiber Laser and Difference-Frequency Generation. J. Infrared Millim. Terahertz Waves 33 (2012)
- Online Article: Dimitri Basov, Martin Wagner et al: How to control superfast surface plasmons
- Article: Breuer, M. et al. Nano-FTIR Spectroscopy Reveals Material’s True Nature. Photonics Spectra (2018)
