MDL pro
Modular Tunable Single-Mode Diode Laser System for 19" rack integration
- Up to 4 lasers in DL/DFB pro configuration
- Spectral coverage 369 .. 1770 nm
- Low noise and drift, narrow linewidth

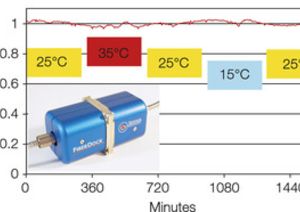

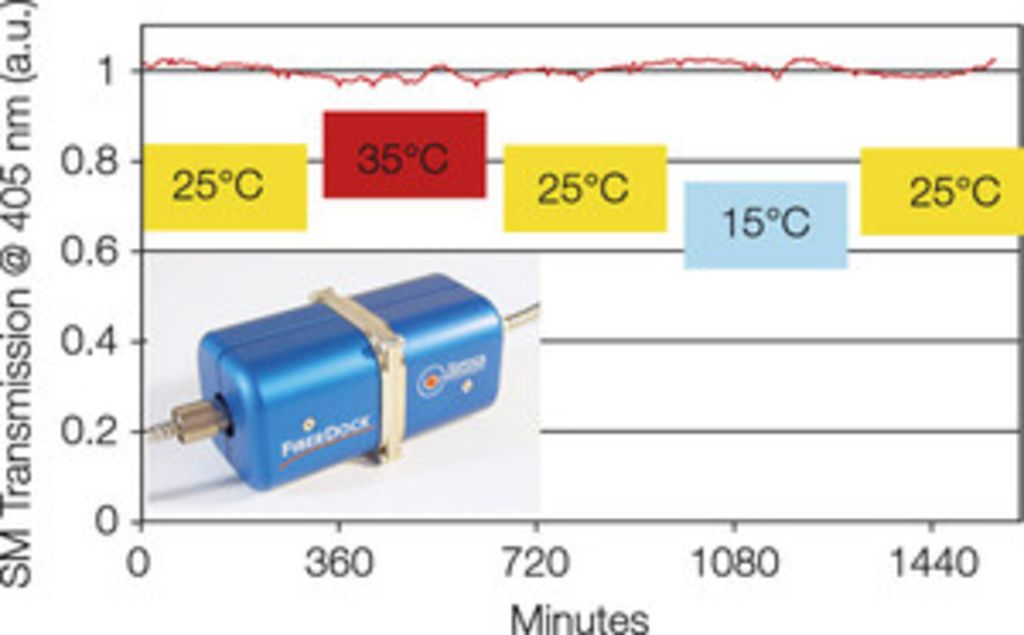

- Light delivered by single-mode PM optical fibers
- Digital control via DLC pro for best performance and convenience

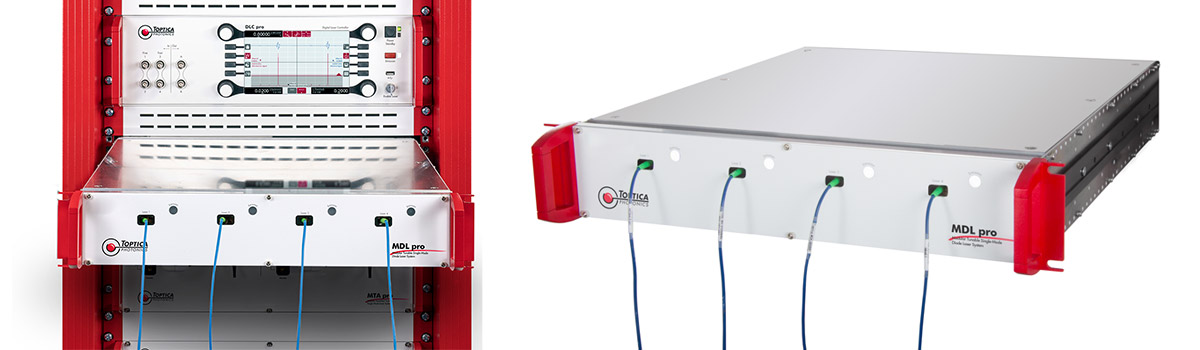

The MDL pro combines up to four narrow-linewidth tunable diode lasers in a compact 19” sub-rack and seamlessly integrates into the T-RACK or other suitable 19” racks. This solves many challenges of modern atomic optics: It simplifies laser operation with all integrated lasers being controlled from a single unified interface. Furthermore, it helps to clear optical tables and to stow away lasers into a 19" form factor. Thereby, it enables researchers to focus on their experiment rather than on their laser system. Please see Laser Rack Systems for the complete product family.

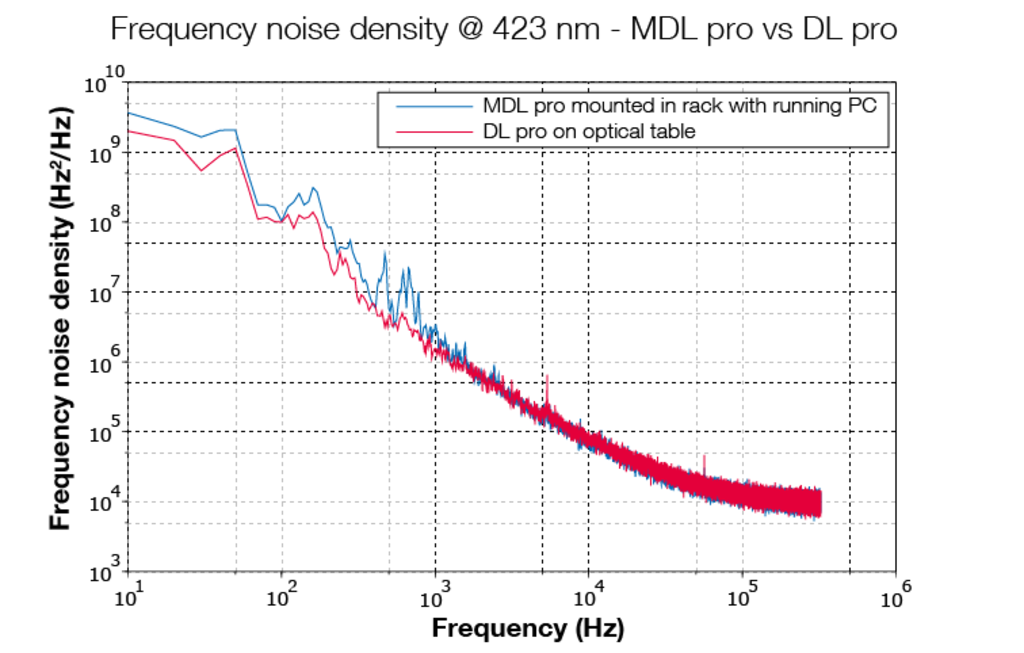

MDL pro modular laser systems achieve the same ultimate performance as TOPTICA’s established DL pro or DFB pro series: Unprecedented passive stability, unique locking solutions and narrow linewidth.

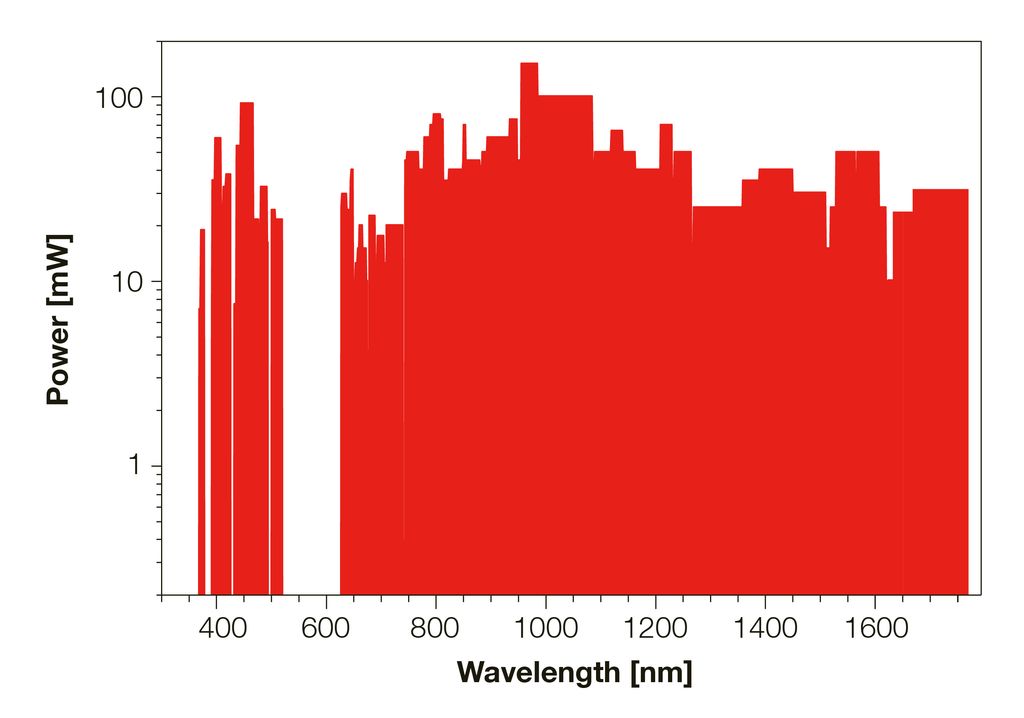

The MDL pro integrates tunable single-mode laser modules at wavelengths between 369 and 1770 nm. These modules are based on TOPTICA's DL pro or DFB pro lasers. Up to four individual modules can be selected and combined freely in the MDL pro. All laser diodes from TOPTICA stock lists are available.

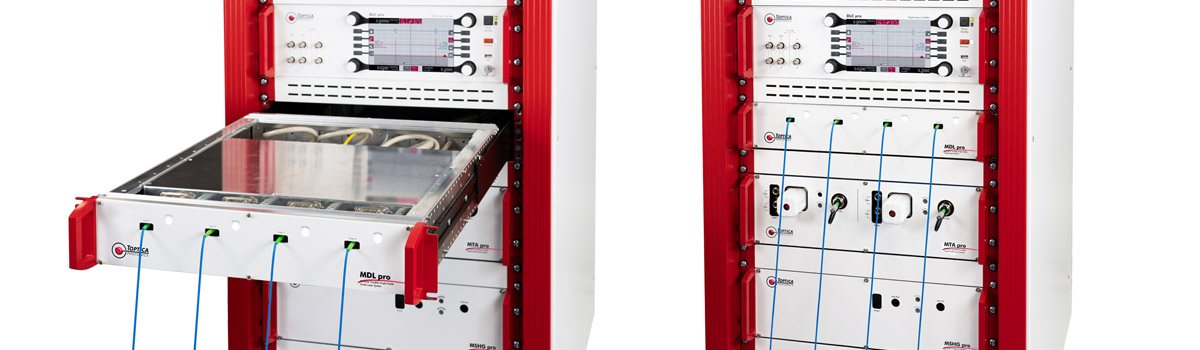

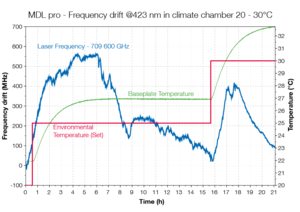

The MDL pro modular laser unit features a full-extension pull-out mechanism ensuring easy access to the laser modules. Moreover, it offers passive vibration isolation decoupling the lasers from the environment. The unit is highly compact consuming only 2 RU in height. An additional 1-RU space is recommended for thermal isolation between different laser units. Optical output is fiber-delivered allowing for flexible laser light delivery wherever required.

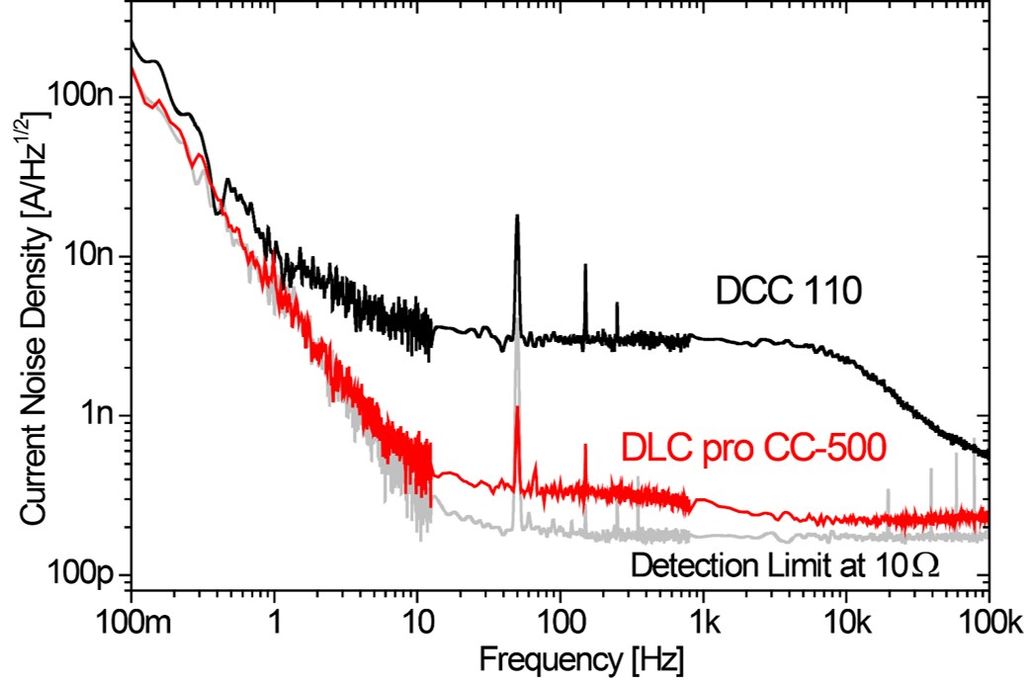

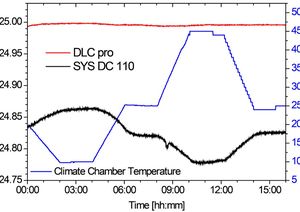

The MDL pro laser modules are controlled with TOPTICA’s DLC pro. Its digital architecture enables low-noise laser operation, intelligent locking functions and remote control via Ethernet.
-
Specification
The MDL pro may be included in a T-RACK and therefore be part of a complete Laser Rack System. In this case, one takes full advantage of the integrated rack solution. The MDL pro may also be purchased for mounting in a standard 19" rack by the customer. A regular 4-post rack with 600 mm or 800 mm depth (post separation between 500 mm and 700 mm) is required. Space requirements in the rack vary depending on the specific configuration. One unobstructed height unit has to be added below each module (MDL pro, DLC pro) for proper thermal managmenent. For details on rack requirements please contact TOPTICA. Finally, the MDL pro may also be used as a table-top solution consisting of one laser subrack and one or two DLC pro subracks.
Dimensions MDL pro: Height: 3 RU (including 1-RU blanking front panel), Width: 19“, Depth: 493 mm
DLC pro: Height: 4 RU (including 1-RU blanking front panel), Width: 19“, Depth: 348 mmIntegrated Modules Up to 4 laser modules based on DL pro, DL pro HP, DL pro F or DFB pro Weight < 22 kg (MDL pro laser unit), <8.5 kg (DLC pro control unit) Power Consumption DLC pro: 250 W max., typ. 35 W, no active cooling fans Environmental temperature 15-30 °C (operation), 0-40 °C (storage and transport) Environmental humidity Non condensing Pre-Configured Laser Modules*
HP 369 HP 397 HP 399 HP 420 HP 461 633 Typical applications Yb ion cooling Ca ion cooling Yb cooling Ca cooling, Sr ion cooling, Rb Rydberg Sr cooling, Cs Rydberg HeNe laser wavelen. Wavelength (nm) 368.5 - 370.8 396.5 - 398.5 399 nm - 400.5 420 - 423 457 - 461 631 - 635 Peak power ex fiber (mW) 7 35 60 38 220 17 Typical instantaneous linewidth (kHz) 850 340 250 340a 40 200 (5 µs)b Type of laser DL pro HP DL pro HP DL pro HP DL pro HP DL pro HP DL pro Optical Isolation (dB) 28 35 35 35 35 60 Fiber type (NA) FC/AFC LL (0.07) FC/AFC LL (0.07) FC/AFC LL (0.07) FC/AFC LL (0.07) FC/AFC LL (0.07) FC/APC (0.11) HP 637 670 F 674 F 729 780 850 Typical applications NV center, Yb ion clear out laser Li cooling Sr ion clock Ca ion clock Rb cooling Cs cooling, Ca ion repump Wavelength interval (nm) 635 - 639 665 - 672 >672 – 674 <728 - >730 777 - 790 840 - 875 Peak power ex fiber (mW) 24 13 8 15 90 38 Typical instantaneous linewidth (kHz) 600 (5 µs)b 100 30 1 15 5 Type of laser DL pro HP DL pro DL pro F DL pro F DL pro DL pro Optical Isolation (dB) 35 60 60 60 60 60 Fiber type (NA) FC/APC (0.11) FC/APC (0.11) FC/APC (0.11) FC/APC (0.11) FC/APC (0.11) FC/APC (0.11) BFY 780 BFY 852 Typical applications Rb cooling Cs cooling Wavelength interval (nm) 780,24 852,34 Peak power ex fiber (mW) 36 36 Typical instantaneous linewidth (kHz) 10 10 Type of laser DL pro BFY DL pro BFY Optical Isolation (dB) 60 60 Fiber type (NA) FC/APC (0.11) FC/APC (0.11)
Configurable Laser Modules**
MDL DL pro MDL DL pro HP MDL DL pro F MDL DFB pro MDL DL pro BFY Wavelength interval (nm) 368.5 .. 370.8 369 .. 641 Please inquire 633 .. 1770 670 .. 900 nm*, for other wavelengths please inquire Peak power ex fiber (mW) 6 .. 160 7 .. 220 same as DL pro 1 .. 80 18 .. 36 Typical instantaneous linewidth (kHz) 0.6 .. 90 10 .. 850 1 .. 30*** 20 .. 500 10 Type of laser DL pro DL pro HP DL pro F DFB pro DL pro BFY
* Pre-configured laser modules include DL pro, DL pro HP or DL pro F.
** Free combination of up to 4 laser modules. Includes a DLC pro; if 3 or 4 laser modules are configured, a second DLC pro may be included depending on the exact configuration.
*** Same linewidth as DLC DL pro with Narrow Linewidth option
a = Estimate only
b = Upper limit, see Application Note for more details -
Additional Top Seller
DLC MDL pro Ca+ DLC MDL pro Yb+ Application Ion cooling 1st
ionization
stepRepump A Repump B Ion cooling 1st
ionization
stepRepump A Repump B Wavelength (nm) 396.959 422.792 854.444 866.452 369.524 398.912 935.186 760.073 Peak power ex fiber (mW) 35 38 38 38 7 60 8 17 Typical instantaneous linewidth (kHz) 340 340a 5 5 850 340a 2000 (5 µs)b 2000 (5 µs)ab a = Estimate only
b = Upper limit, see Application Note for more details - Additional Information
-
Options
- Lock Option for DLC pro: Software license that enables a number of features on a specific DLC pro. These allow to control the frequency of a laser for example by using a saturated absorption spectroscopy setup with a reference cell.
- Electronics Modules: A broad variety of electronic locking modules is available for frequency stabilization.
-
Applications
- Applied Quantum Technology
- Quantum Computing
- Laser Cooling of Atoms & Ions
- Degenerate Quantum Gases (BEC, DFG)
- Rydberg Excitation (Rydberg Flyer for complete laser solutions)
- Optical Clocks
-
Downloads
- Short Info: T-RACK
- Brochure: Laser Rack Systems
-
Literature
- Article: Konstantin Birngruber, Stephan Falke Demand-tailored laser systems: Integrated multi-color laser solutions for quantum optics and biophotonics, Physik Journal Physics’ Best 2019
- German Article: Konstantin Birngruber, Stephan Falke Bedarfsoptimierte Lasersysteme - Integrierte Multi-Farben-Laserlösungen für Quantenoptik und Biophotonik, Physik Journal Best of 2018
- Application Note: Phase and Frequency Locking of Diode Lasers
- Application Note: Linewidth Measurement of Diode Lasers
-
