The proven laser solution for quantum applications

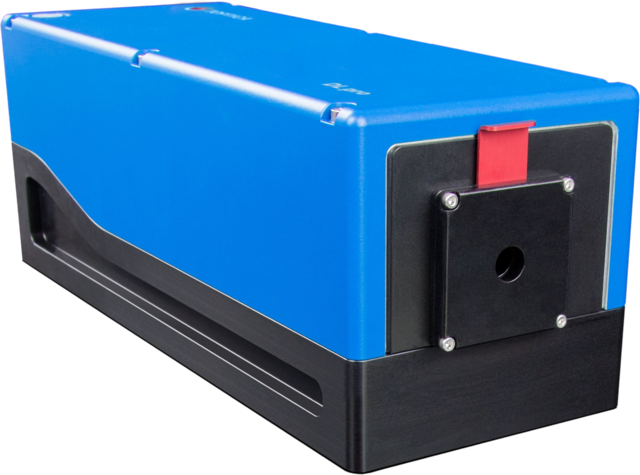

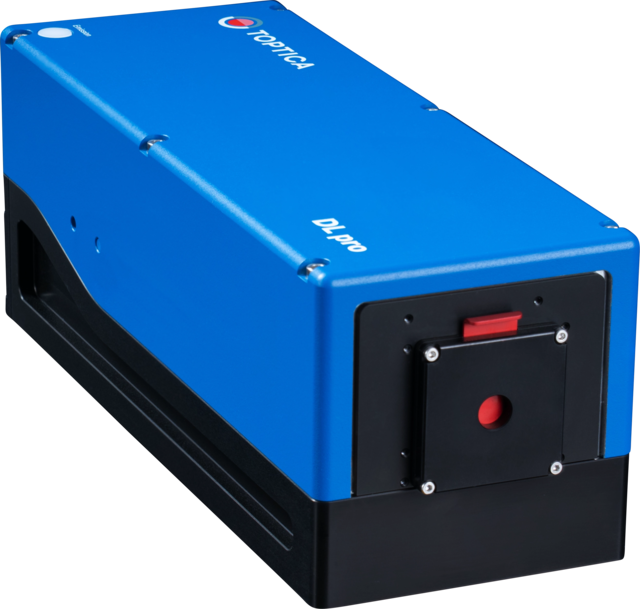

DL pro
Narrow linewidth, tunable diode laser
The DL pro is a reliable ECDL made for quantum applications. Based on our +25 years experience in laser technologies, its unique design allows to provide almost all wavelengths between 369 nm and 1770 nm. Thousands of units have been produced so far, with power up to 400 mW and free running linewidth down to 0.6 kHz.
Its digital controller allows a stable performance, the GUI making the remote access easy. This is especially convenient when the DL pro rack version is requested. This laser is fully compatible with the extensive TOPTICA portfolio of driving electronics, software and accessories.
Image Gallery
Your Benefits
For all atoms and ions
Lasers at all laser wavelengths between 369 nm and 1770 nm to address most of the relevant optical transitions for quantum applications.
Narrow linewidth
The DL pro patented mechanical design results in the suitable linewidth for the applications where a low frequency noise is required.
Stable operation through digital control
The digital platform DLC pro performs with low current noise, excellent temperature and precise piezo controls to unleash the full potential of your lasers.
Ready-to-order configurations
Our standard laser configurations are simple to order and ready to use for your quantum experiment. Some of these Top Sellers are available from stock for shorter delivery times. If you don't find what you are looking for, you can always assemble a user-defined system.
The right diodes
A large variety of wavelength-selected single-mode laser diodes for your lasers, from standard wavelengths to exotic ones.
Applications
Quantum physics science
TOPTICA's products are widely and successfully used for scientific applications in fundamental quantum technology. In these fields quantum physics, quantum optics, atom optics, photonics, statistical physics and related fields are investigated in order to understand the basics of quantum technology.
Quantum computing & simulation
Lasers are used to realize most of the quantum systems used for quantum computing and simulation. Lasers are utilized to prepare quantum states, to realize quantum gates, and to read out qubits. In addition, lasers are used to link different quantum systems (e.g. to connect quantum computers or quantum computing subunits), a major task of quantum communication. Tunable diode lasers, fiber amplifiers, optical frequency combs, and wavelength meters, ideally combined in laser rack systems as complete solutions, are the most important products.
Optical quantum clocks
Welcome to the next generation of time and frequency metrology. Harnessing the full power of quantum physics and ultra-stable lasers, optical quantum clocks are redefining how we measure time...
Quantum dots & microcavaties
Highest stability and absolute frequency accuracy for inspecting PICs, semicon and RF devices. Expandable to high scan speed and broadest coverage.
Options
Single stage optical isolation
Protects the laser diode from back reflections to prevent damage but also to ensure untroubled single-mode operation and tuning. Also for fiber coupling with angle polished fibers (both ends) a single stage isolator is required.
Dual stage optical isolation
If reflections from the experiment into the laser are expected go for this high isolation option. Also for fiber coupling with non-angle polished fibers a double stage isolator is required.
Fiber delivery
Fiber Delivery (FD) is optionally available with TOPTICA's patented fiber coupler FiberDock and a suitable polarization maintaining (PM) fiber.
Motorization
Control coarse tuning via software interface. Available for most DL pro configurations, with most AR laser diodes and some FP diodes. Not available for DL pro F systems.
Bias-T
Allows current modulation frequencies above 150 MHz and up to several GHz, depending on the diode. Also suited for seed lasers of TA or NLO systems. Compatible with DL pro and DL pro HP, not with DL pro F.
Narrow linewidth
With this option DL pro laser systems are optimized for narrow linewidths. It is also suited for seed lasers of TA or NLO systems as well as lasers of Laser Rack Systems but not for DL pro HP lasers. DL pro F lasers are always optimized for a narrow linewidth.
Beam shaping
To shape elliptical laser beams into round profiles, either an anamorphic prism pair (APP) or cylindrical lenses are used. The compression ratio is set at the factory.
Locking and other electronics modules
For DLC pro, the versatile DLC pro LOCK option is available as well as FALC pro and PDH/DLC pro modules. With DLC ext a number of analog locking modules is available.
19" Rack Integration
Modular integration into 19" industry rack to save space and ensure mobility.
(using DL pro stabilized to < 1 Hz linewidth) T. Puppe et al., Characterization of a DFG comb showing quadratic scaling of the phase noise with frequency, Optics Letters Vol. 41, Issue 8 (2016)
