CTL
Continuously Tunable Laser

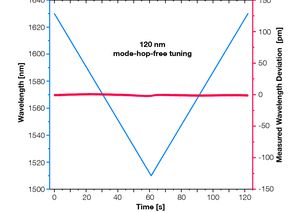

- Wide mode-hop-free tuning (up to 120 nm)
- Available at wavelengths between 880 nm and 1630 nm
- High resolution (down to kHz level)

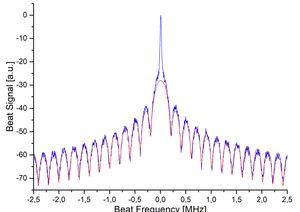

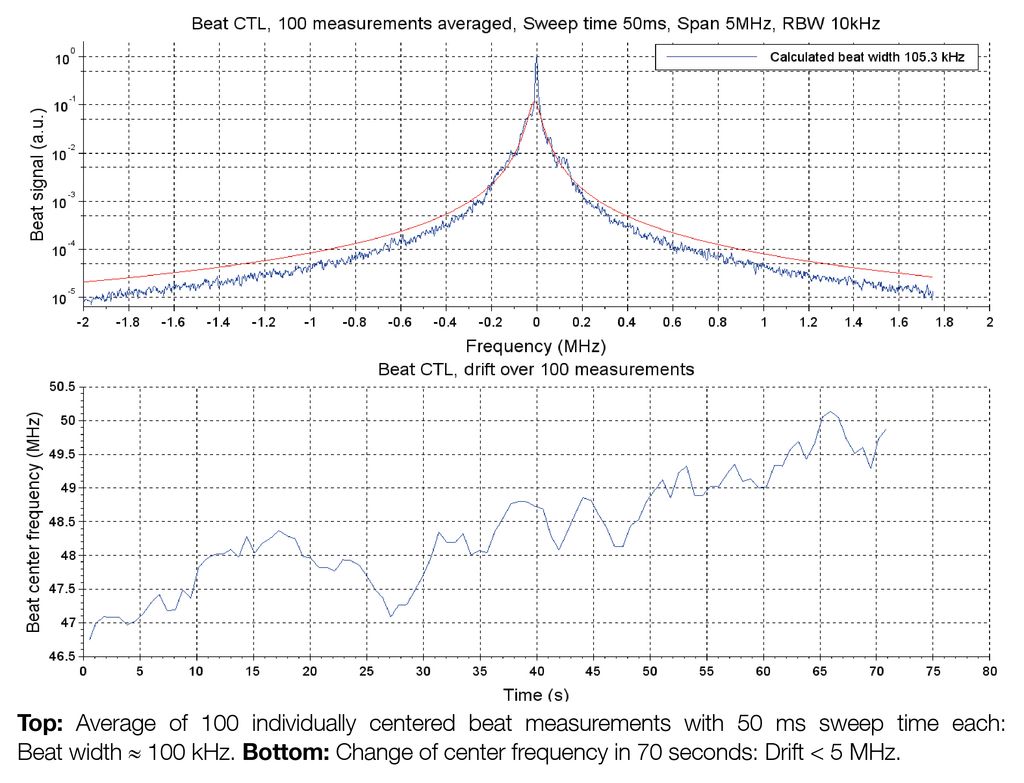

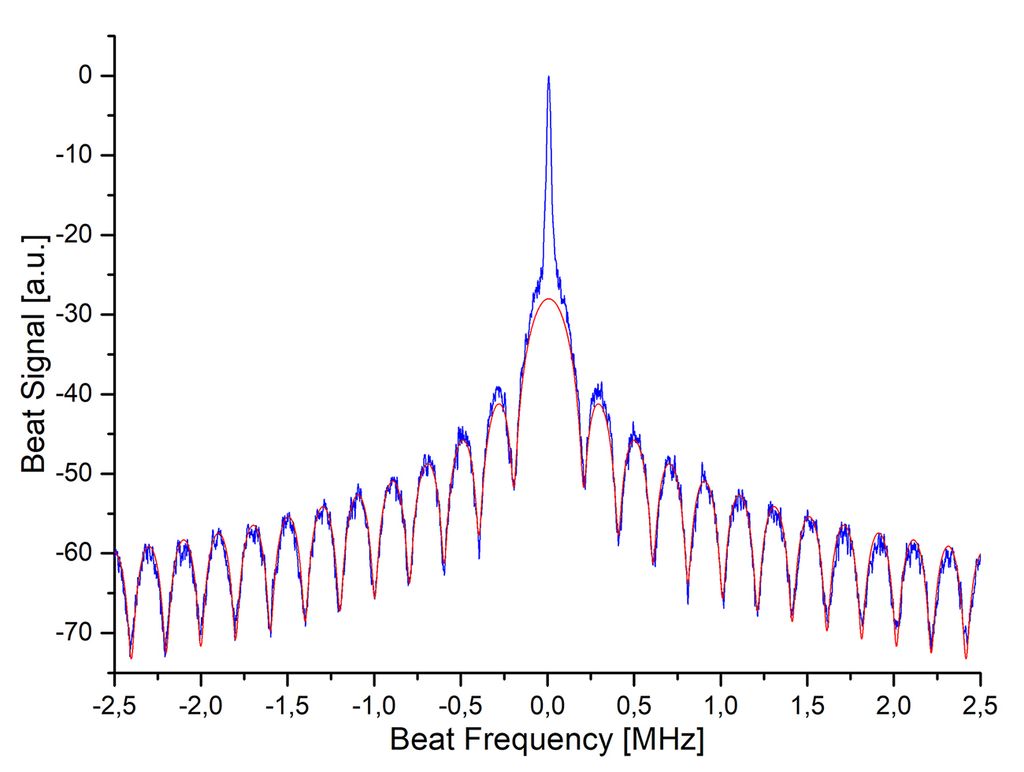

- Perform measurements at the (quantum) limit with low noise & drift (linewidth < 1 kHz)
- User friendly control panel and remote control
The CTL is the ultimate choice when looking for a laser that is widely and continuously tunable without any mode-hops. It has high power, a narrow linewidth and low drift. Scans can be performed with highest resolution. Mode-hops are prevented by an innovative opto-mechanical design (patent US9960569B2) together with an active feedback loop called SMILE (Single Mode Intelligent Loop Engine) that keeps the laser on the same mode at all times. With the fully digital, low noise and drift DLC pro controller, the CTL laser is easy to use and operate via touch-screen and knobs as well as via remote PC GUI and command language (Python SDK). Since firmware 2.0.3 (free updates available), DLC CTL now includes a test system for characterizing components or recording spectra.

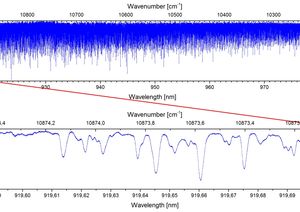

CTL lasers are ideally suited for applications that require large mode-hop free tuning ranges, such as the resonant excitation of small structures like quantum dots and micro-cavities. Also molecular spectroscopy and component testing will benefit from CTLs exceptional properties.
-
Specification
CTL 900 CTL 950 CTL 1050 CTL 1320 CTL 1470 CTL 1500 CTL 1550 Wavelength [nm] 880 - 940 920 - 990 1010 – 1100 1290 - 1350 1420 - 1530 1460 - 1570 1510 - 1630 Absolute accuracy < 100 pm < 100 pm < 110 pm < 130 pm < 140 pm < 150 pm < 150 pm Relative accuracy < 10 pm < 10 pm < 10 pm < 10 pm < 10 pm < 10 pm < 10 pm Typical instantaneous linewidth < 0.5 kHz < 1 kHz < 0.5 kHz < 1 kHz < 1 kHz < 1 kHz 0.3 kHz Power at gain maximum > 50 mW
> 17 dBm> 80 mW
> 19 dBm> 90 mW
> 19.5 dBm> 50 mW
> 17 dBm> 40 mW
> 16 dBm> 50 mW
> 17 dBm> 50 mW
> 17 dBm - Additional Information
-
Options
Optical isolation single stage
Isolators are used to protect the laser diode from back reflections. This not only prevents damage to the diode but also ensures untroubled single-mode operation and tuning. Fiber coupling with angle polished fibers (both ends) requires at least a single stage isolator. Optical isolation double stage
Double stage isolators are needed if reflections from the experiment into the laser are expected. Fiber coupling with non-angle polished fibers also requires a double stage isolator. Fiber Delivery
Fiber Delivery (FD) is optionally available with TOPTICA's patented fiber coupler FiberDock and a suitable polarization maintaining (PM) fiber. FiberDock provides highest single-mode fiber coupling efficiencies, easy alignment and at the same time highest stability.
For most lasers, we specify a PER behind fiber of >20 dB with our Fiber Delivery option. Please also inquire about Long Life and High Power fibers as well as fiber splitters. Optical isolation is mandatory for fiber coupled diode laser systems.Electronics Modules A broad variety of electronic locking modules is available for frequency stabilization. Optical amplification An optical amplifier, BoosTA pro, can be operated from the same DLC pro controller. -
Applications
- Micro-cavities and pumping micro combs
- Quantum dots
- Component testing
- Spectroscopy
