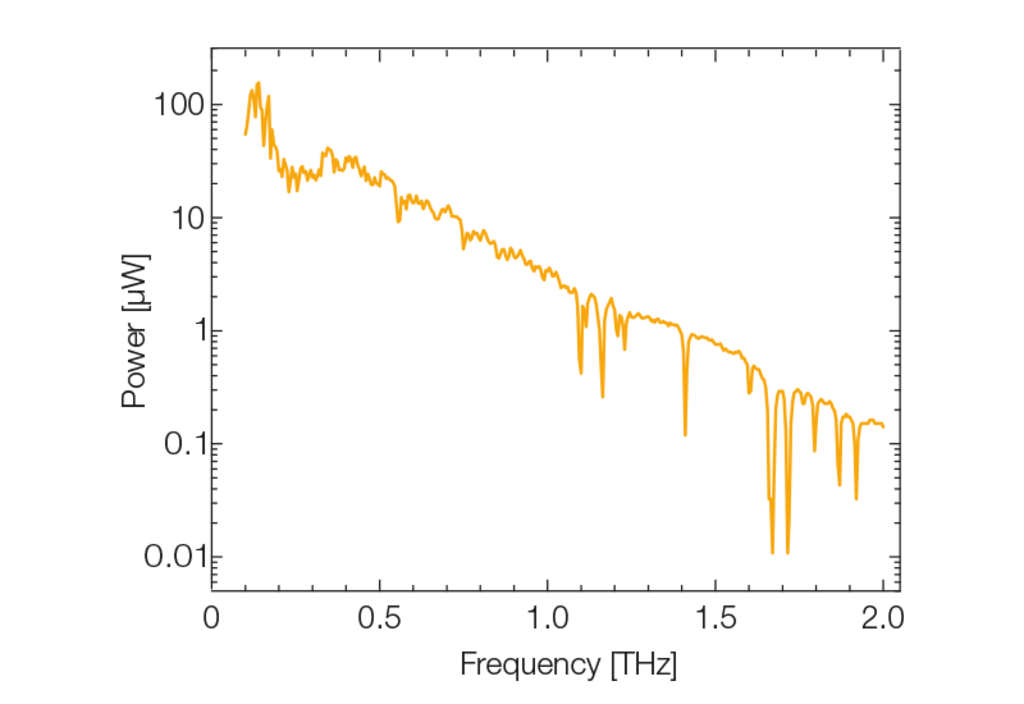

Output power spectrum of an InGaAs photodiode emitter.
GaAs and InGaAs Photomixers
Emitter/receiver modules for TeraBeam
- GaAs and InGaAs-based emitter/receiver modules
- Fully packaged modules with SM/PM fiber pigtail
- Up to 100 µW output power
- New: Rh:InGaAs receivers, more than 10 dB signal improvement with TeraScan 1550
- Requires TeraBeam 780 or TeraBeam 1550

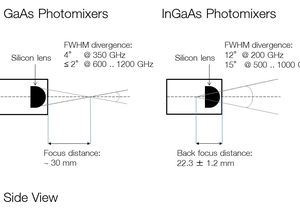

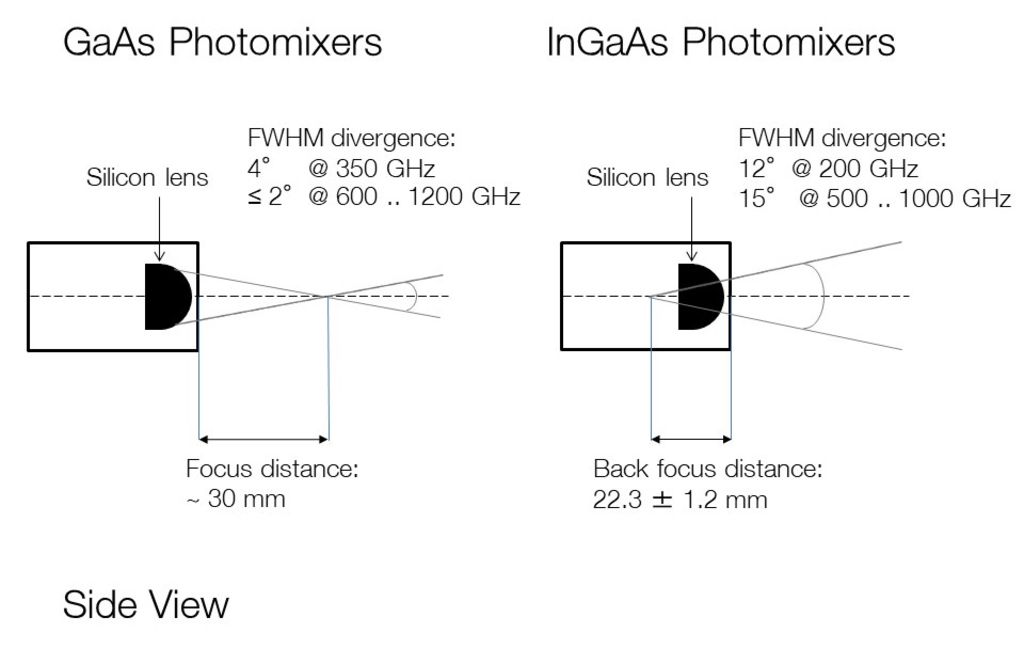

Having teamed up with some of the leading terahertz research institutes, TOPTICA is able to provide top-quality GaAs and InGaAs photomixers. Both material systems offer an excellent bandwidth and dynamic range. The modules come equipped with a Silicon lens and SM/PM fiber pigtail. The all-fiber design eliminates the need for time-consuming laser beam alignment, and enables an easy and flexible integration into any terahertz assembly.
-
Specification
Specifications GaAs Modules InGaAs Modules Terahertz emitter PCA-FD-0780-100-TX-1, GaAs photomixer PCA-FD-1550-100-TX-1, InGaAs p-i-n photodiode Terahertz receiver PCA-FD-0780-130-RX-1, GaAs photomixer PCA-FD-1550-130-RX-1, InGaAs photomixer
PCA-FD-1550-130-RX-3, Rh:InGaAs photomixerExcitation wavelength 0.8 µm 1.5 µm - Additional Information
- Applications
- Downloads
-
Literature
- Scientific Paper: Deninger, A., et al., 2.75 THz tuning with a triple-DFB laser system at 1550 nm and InGaAs photomixers, J. Infr. THz Waves (2015)
- Scientific Paper: Roggenbruck, A., et al., Using a fiber stretcher as a fast phase modulator in a continuous wave terahertz spectrometer, J. Opt. Soc. Am. B (2012)
- Scientific Paper: Stanze, D., et al., Compact cw Terahertz Spectrometer Pumped at 1.5 µm Wavelength, J Infrared Milli Terahz Waves (2010)
- Scientific Paper: Roggenbruck, A., et al., Coherent broadband continuous-wave terahertz spectroscopy on solid-state samples, New Journal of Physics (2010)
- Overview Article: Lang, M., et al., Laser-based terahertz generation & applications, Photonik International (2012)
- Review paper: Naftaly, M., et al., Industrial applications of terahertz sensing: State of play, Sensors (2019)
- Scientific paper: Nellen, S., et al., Experimental comparison of UTC- and PIN-photodiodes for continuous-wave terahertz generation, J Infrared Milli Terahz Waves (2019)
-
