Frequency-Converted Lasers

Frequency doubling and frequency quadrupling

Nonlinear frequency conversion techniques access wavelengths that cannot be generated directly from laser diode technology. Via second or fourth harmonic generation, TOPTICA laser systems can access the UV, blue, green, yellow and orange spectral ranges at high powers. TOPTICA offers tunable, single-frequency systems at any wavelength between 205 nm and 4000 nm, employing ultrastable seed lasers, power amplification in semiconductor or fiber amplifiers, and a proprietary bow-tie cavity design – all in established pro technology.

Easy to use fully integrated systems

Superior passive stability

Control everything from a single window from anywhere in the world

Seamless integration into 19” T-RACK

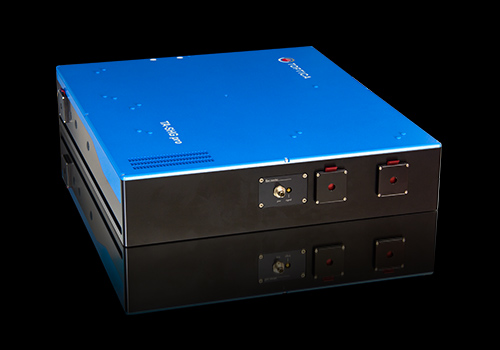

TA-SHG pro

High power, tunable, frequency-doubled diode laser

TA-FHG pro

High power, tunable, frequency-quadroupled diode laser

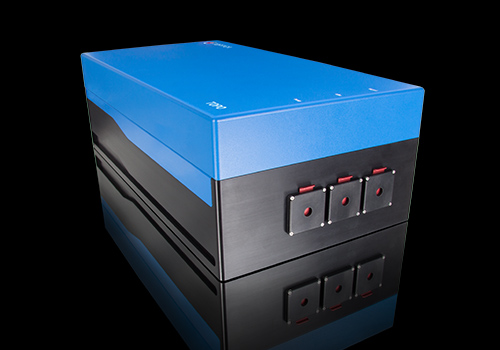

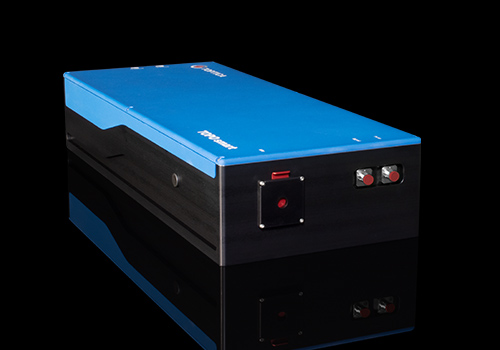

Widely Tunable High-Power Continuous-Wave OPO

330 – 780 nm
Up to 20 W
2 .. 20 nm typical tuning range


205 – 390 nm
Up to 3 W
1 .. 10 nm typical tuning range


1.45 - 4.0 µm (2500 - 6900 cm-1)
Up to 8 W
300 GHz (10 cm-1)
mode-hop-free tuning range


SHG pro

Frequency-doubling unit

DL-SHG pro

Tunable, frequency-doubled diode laser

330 – 780 nm
Up to 2000 mW
2 .. 20 nm typical tuning range

210 – 680 nm
Up to 50 mW
2 .. 15 nm typical tuning range
