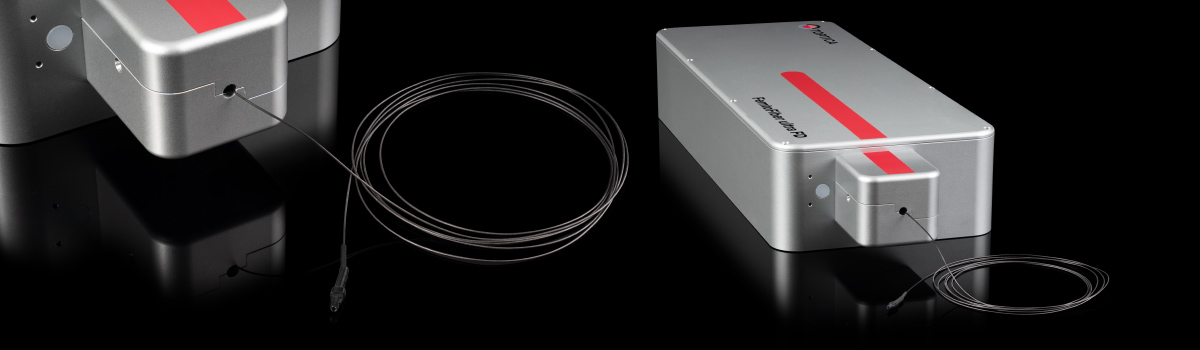

FemtoFiber ultra Mini2P

Femtosecond fiber laser for Mini2P

  • No mirror alignment, just automated fiber coupling
  • Simple fiber exchange with safeguard monitor to make misalignment an impossibility
  • Clean Pulse Technology

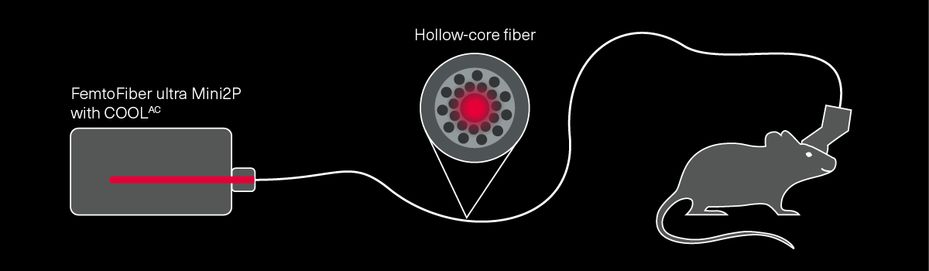

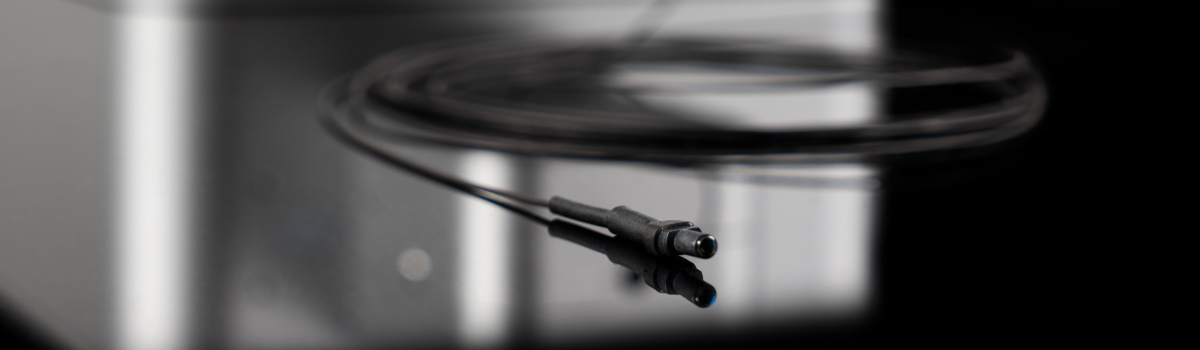

In  the FemtoFiber ultra Mini2P, TOPTICA combines a polarization-maintaining hollow-core fiber suitable for Mini2P (miniaturized 2-photon microscope) with TOPTICA’s proprietary COOL technology:  COOLAC offers hands-off, automated fiber coupling that eliminates manual alignment at installation, optimizes fiber coupling efficiency at the touch of a button, and provides a safeguard monitor to make misalignment an impossibility. With COOLAC, exchange of the Mini2P-fiber is easy and fast, and can be peformed by the user.

Additionally, an integrated AOM for fast power modulation, software-controlled dispersion precompensation (GDD) and TOPTICA’s unique Clean Pulse Technology complete the laser system.

Request a quotation



  • Specifications

    Center wavelength920 nm
    Pulse duration< 150 fs (typ. < 130 fs)
    Average output power after fiber [with AOM]> 150 mW
    Repetition rate80 MHz
    Motorized dispersion precompensation (GDD)-20,000 .. +1,000 fs²
    Integrated power control (AOM)bandwidth > 1 MHz, input impedance 1 k Ω
    Linear polarization> 90 %, axis not aligned
    Fiber Input ConnectorFC/PC
    Fiber Output ConnectorMini2P-specific collimator
    Fiber Cable Length (max.)~ 2 m
    Fiber Cable Typethin jacket
    Dimensions laser head76 x 165 x 475 mm³ (excl. feet)
    Dimensions laser control unit140 x 483 x 534 mm³ (with handles)
    Power supply110 to 240 V AC
    Power consumption< 250 W  (typ. < 150 W)
    PC InterfaceEthernet, USB
    Communication protocol and control optionsGraphical User Interface (GUI),  TOPTICA Python Laser SDK, Device Control Protocol (DeCoP)
    Environment temperature19 .. 25 °C (operating), 18 .. 28  °C (extended operating, not all specs guaranteed), 0 .. 40 °C (storage)
    Environment humidity< 60 %, non-condensing with dew point at < 19 deg.C.



  • Options

    Pulse Picker
    Integration of pulse-picker for adjustable repetition rate. The pulse-picker picks single pulses from the oscillator from every second pulse down to every tenth pulse only.

    Custom Repetition Rate
    Fixed custom repitition rate provides a modified oscillator with an upon ordering pre-defined repetition rate.

  • Applications

    Neuroscience

    Multiphoton Microscopy

    FLIM
