FemtoFYb 1030-400

Sub-ps Yb amplifier seeder

  • SAM mode-locked all PM fiber system
  • User friendly turnkey operation, alignment-free system
  • Robust and reliable, compact design
  • Optics and electronics in just one box
  • 12V DC power supply with lowest power consumption
  • Fiber coupled output

The FemtoFYb laser systems are fiber-based sub-picosecond  oscillators for seeding industrial laser systems, e.g. for micro-machining. The FemtoFYb laser pulses with excellent amplitude and frequency jitter parameters are amplified to typical multi-Watt levels in the MOPA (master oscillator, power amplifier) laser or regenerative amplifier systems of our customers. Typical amplifiers are slab, rod and disc lasers operating in the 1 µm wavelength regions.

  • Specification

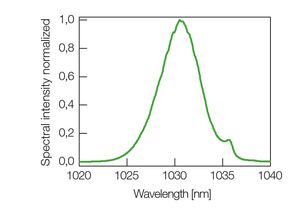

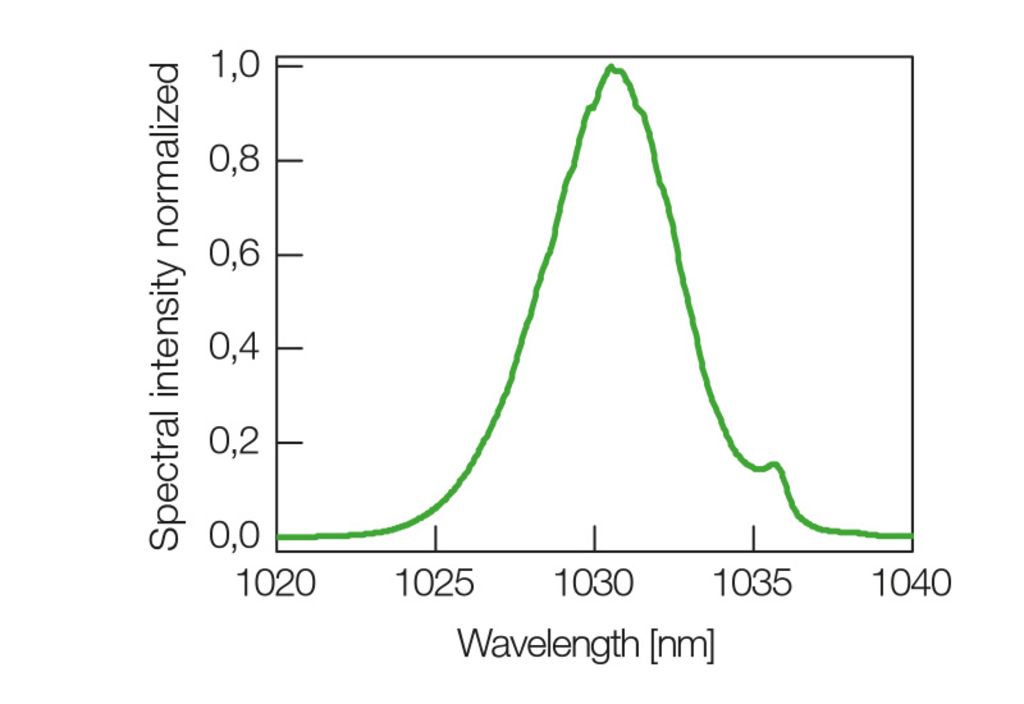

    Wavelength 1030.5 ± 1.5 nm

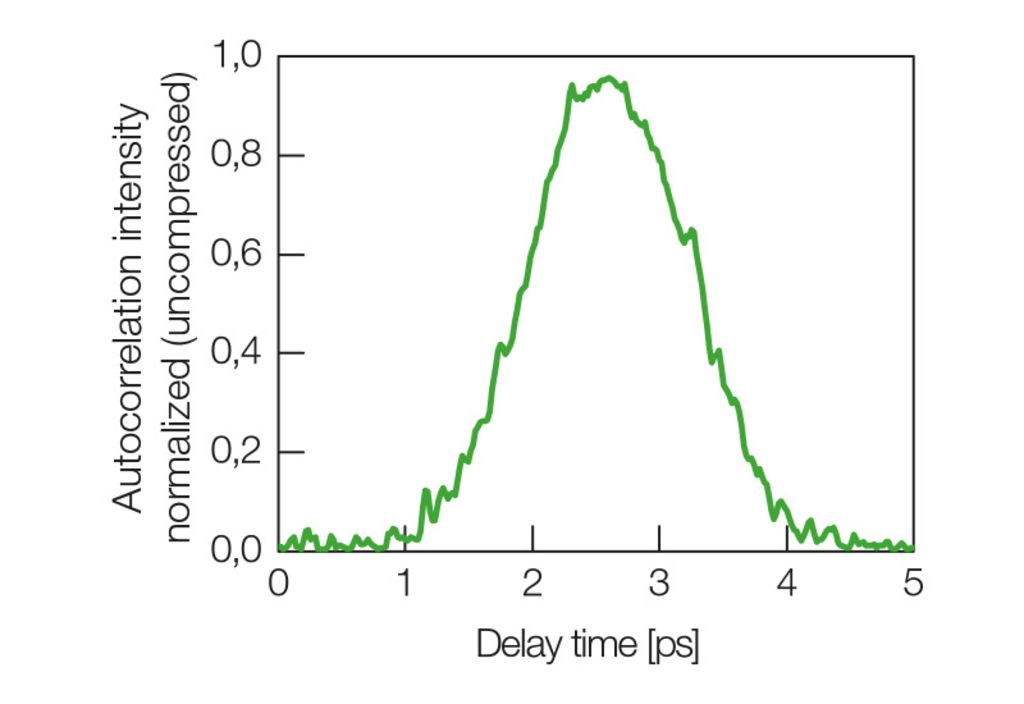

    Pulse Width < 2 ps (chirped output) compressible to < 400 fs
    Laser Output Power > 0.5 mW
    Repetition Rate 30 ± 0.5 MHz

    Linear Polarization PER > 20 dB (typ.)
    Beam Shape TEM00, M² < 1.2
    Trigger Signal (SMA connector) > 150 mV @ 50 Ohm (300 MHz BW), positive
    Spectral width > 4 nm
    Output coupling SM PM fiber pigtail with narrow key FC/APC connector, length > 20 cm

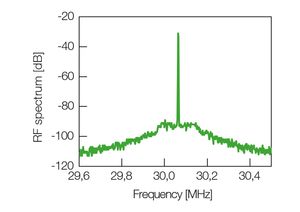

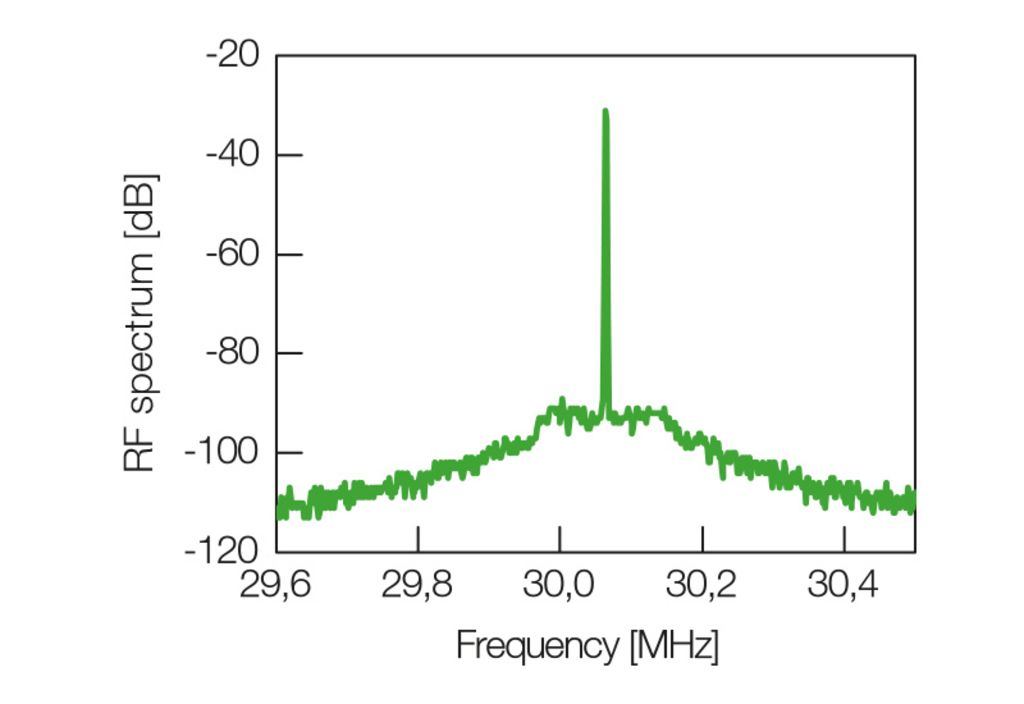

    RF side mode supression > 50 dBc
    Dimensions laser head (HxWxD) 50 x 135 x 194 mm³
    Weight laser head < 2 kg
    Power supply 12 VDC
    Power consumption < 10 Watt
    Interfaces TTL control lines, Switchbox (optional) or remote control (USB)
    Environment temperature 15 - 40 °C (operating), 0 - 40 °C (storage and transport)
    Environment humidity non-condensing
  • Additional Information
  • Options


    The FemtoFiber smart SwitchBox is a small tool for quick starters. It provides all switches, supply and status lines to run every FemtoFiber smart as a stand-alone system without integration environment and therefore is especially recommended for single-system users.

    TOPAS: Graphical User Interface

    The new TOPAS GUI allows to operate the FemtoFErb 1560 in a convenient way via USB. All you need is to download and install the setup wizard program (see Download section).


    Other center wavelength on request

    Other repetition rate on request

    Specific pulse duration on request

  • Applications
    • PicoFYb 1030: Seeding of Yb:YAG amplifiers
    • PicoFYb 1064: Seeding of Nd: YVO4 amplifiers
    • FemtoFYb 1030-400: Seeding of Yb:YAG amplifiers
    • FemtoFYb 1030-800: Seeding of Yb:YAG amplifiers
